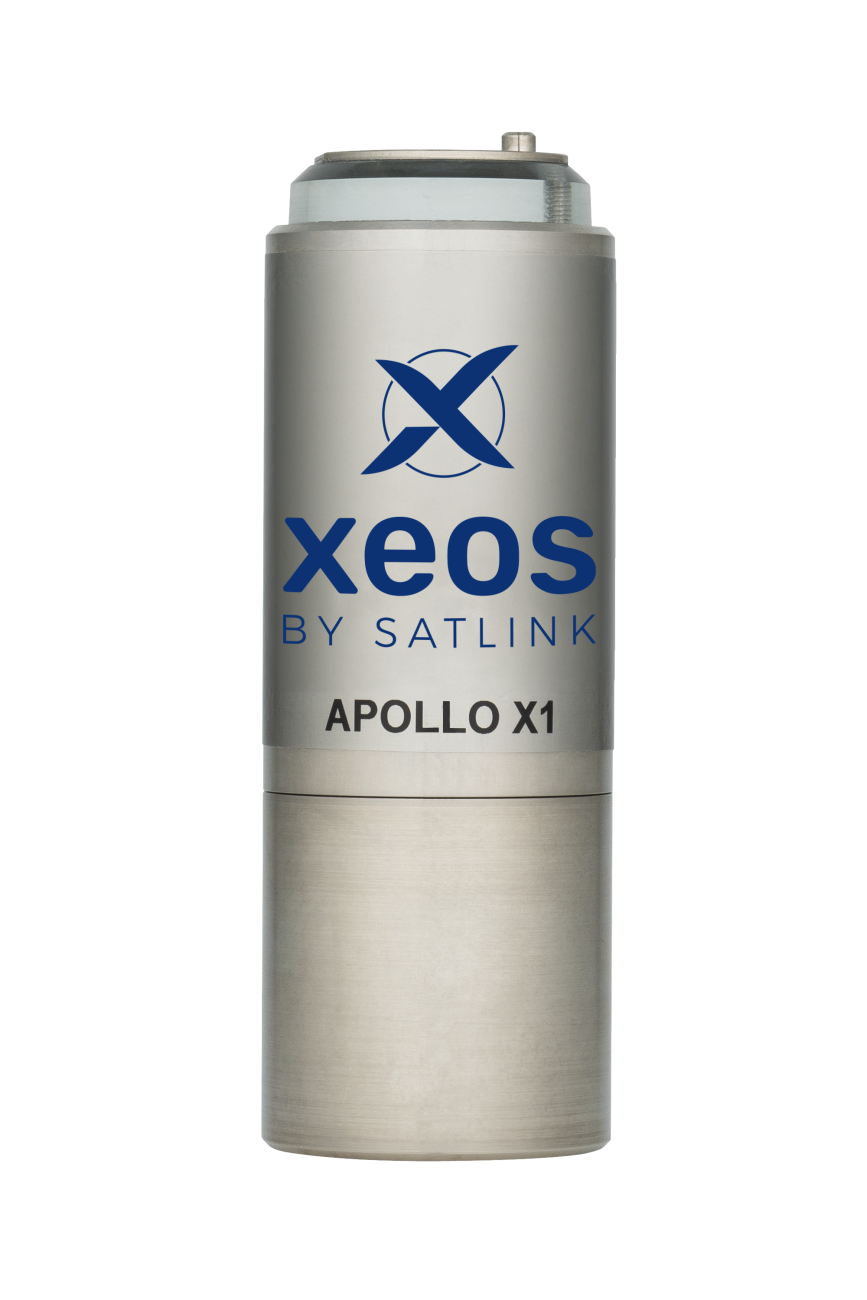

The Apollo X1 is an independently powered submersible beacon that provides two-way communications via Iridium Short Burst Data (SBD), as well as GPS and LED flasher capabilities. It enables tracking of high-value underwater assets such as AUVs, ROVs and sensor networks from anywhere in the world, utilizing a solid-state conductivity sensor to detect when the beacon breaks the surface of the water.
The X1 is a miniature version of the Apollo X platform, and can be mounted to virtually any piece of oceanographic equipment. It offers the same capabilities as the larger beacon except with lower operational endurance and a 6000 meter depth rating.
The beacon is compatible with Xeos Technologies' XeosOnline monitoring software, allowing users to receive incoming messages, send remote configuration commands, and track and monitor all assets from a single intuitive interface. Local setup can be easily performed via Bluetooth.
Specifications:
| Dimensions (L x D): | 14.66 x 5.08 cm (5.77 x 2.0") |
| Weight: | 1825 g - in air 1255 g - in water |
| Battery Supply: | 1 SAFT LSH20 D-cell battery |
| Depth Rating: | 6000 m |
| Iridium TX Power: | 1200 mW (avg 30 sec) |
| Underwater Power: | 270 μW |
| Deployment Example: | 1 year subsurface 45 days at surface (GPS position & Iridium message interval 1 hr, 1 flash every 10 secs) |
