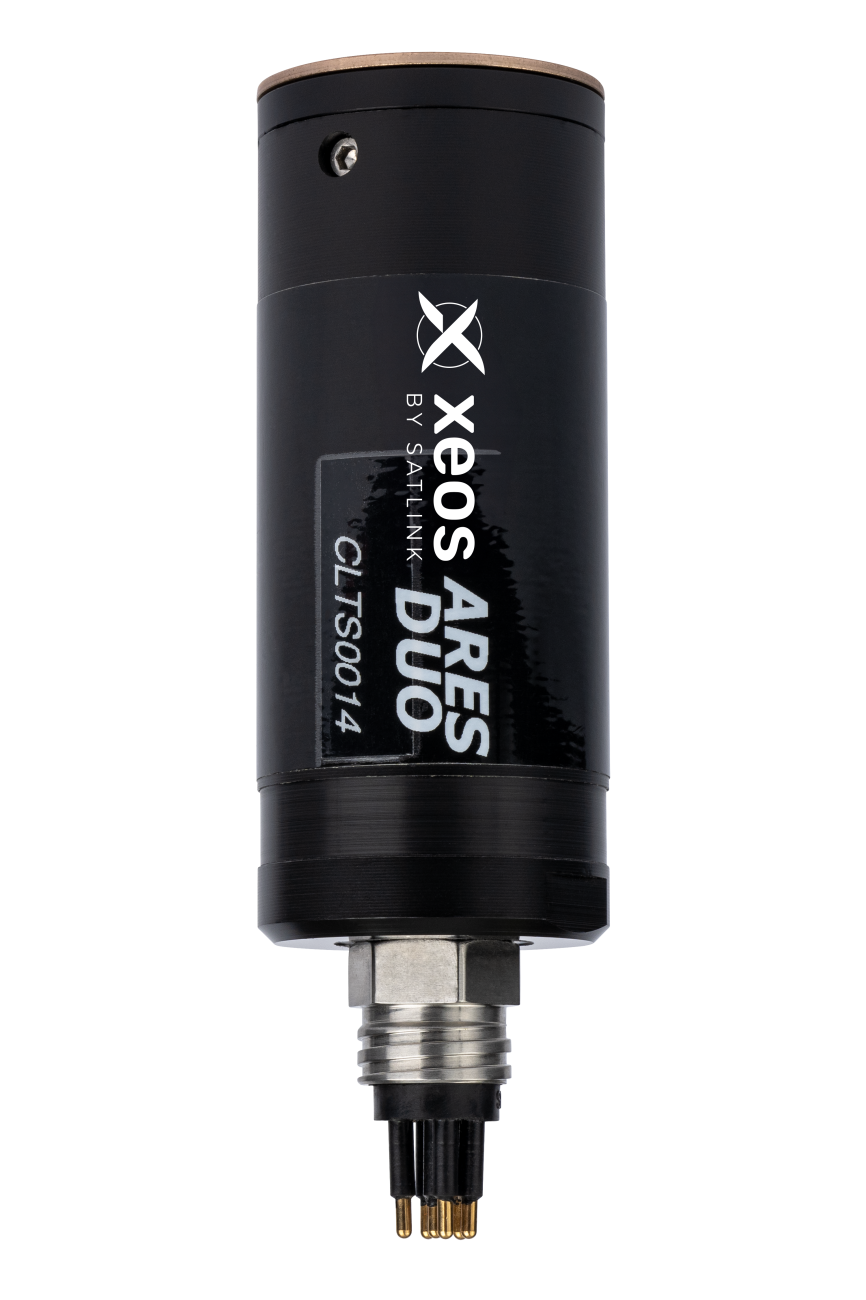

Ares Duo Sensor
The Ares Duo Sensor uses optical measurement via ultra-bright energy-efficient LEDs to provide indications of water quality via both turbidity and chlorophyll concentrations, and is ideal for environmental monitoring, oceanographic research, marine operations, and aquaculture. It offers both digital and analog outputs.
Each compact and low-power sensor is individually calibrated to laboratory standards, and is programmed with responses to red light produced via fluorescence by chlorophyll-a contained in algal cells, and to reflected light that can be converted to quantitative measurements of turbidity.
Specifications:
| Dimensions (D x L): | 4.45 x 10.9 cm (1.75 x 4.3”) |
| Weight: | 246 g - in air 69 g - in water |
| Power Supply: | External 6 – 18 VDC |
| Max Current Draw (at 12V): | 21.5 mA |
| Depth Rating: | 500m |
| Turbidity | Chlorophyll | |
| Optical: | Excitation Wavelength 850 nm Bandwidth 30 nm Scattering Angle 90 degrees Detection Wavelength Range 775-1025 nm |
Excitation Wavelength 465 nm Bandwidth 18 nm Detection Wavelength Range 665-1000 nm |
| Resolution: | 0.1 NTU (0-1500 range) | 0.1 µg/L (0-250 range) |
| Range: | Digital: Both 0-150 and 0-1500 NTU | Digital: Both 0-25 and 0-250 µg/L |
