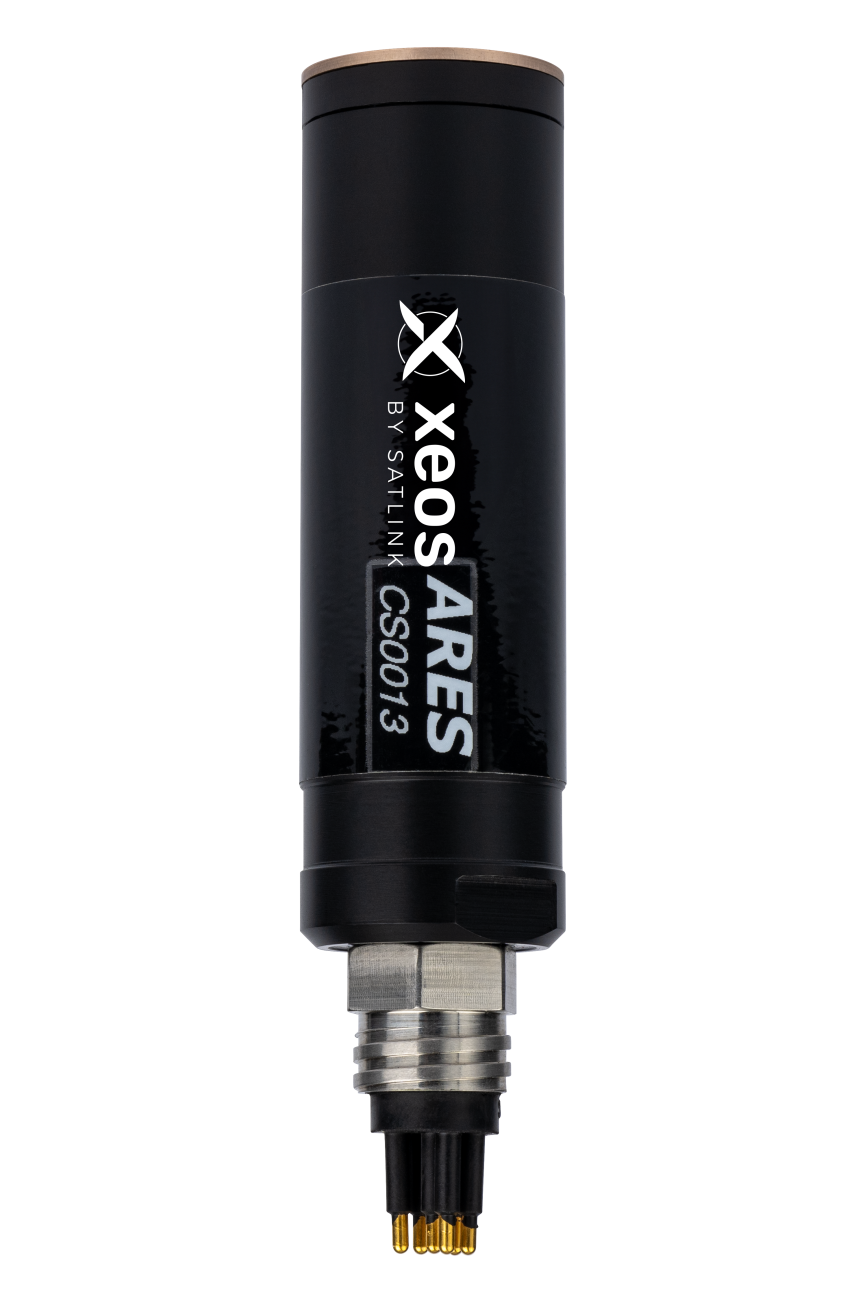

Ares Turbidity Sensor
The Ares Turbidity Sensor uses optical measurement via ultra-bright energy-efficient infrared LEDs to provide indications of water quality, and is ideal for environmental monitoring, oceanographic research, marine operations, and aquaculture. It offers both digital and analog outputs.
Each compact and low-power sensor is individually calibrated to laboratory standards, and is programmed with a response to reflected light that can be converted to quantitative measurements of turbidity.
Specifications:
| Dimensions (D x L): | 3.175 x 10.5 cm (1.25 x 4.13”) |
| Weight: | 148 g |
| Power Supply: | External 6 – 18 VDC |
| Current Draw (at 12V): | Analog sensor 10 mA Analog & digital sensors 12 mA |
| Depth Rating: | 500m |
| Optical: | Wavelength 850 nm Optical Bandwidth 30 nm Scattering Angle 90 degrees |
| Resolution: | 0.1 NTU (0-1500 range) |
| Range: | Analog: Either 0-150 or 0-1500 NTU Digital: Both 0-150 and 0-1500 NTU |
