NMEA 0183 buffers play a key role in managing data flow within marine electronics networks. By isolating signals and distributing data to multiple listeners, these devices ensure the reliable and accurate transfer of NMEA 0183 messages. Widely used in navigation, monitoring, and communication systems aboard vessels, NMEA 0183 buffers are essential for maintaining integrity in environments where multiple devices must share data from a single talker.
NMEA 0183 buffers are specialized NMEA 0183 devices designed to manage and optimize the transmission of data across NMEA 0183 networks. They act as intermediaries between a talker—such as a GPS, AIS, or sonar system—and one or more listeners, including radar displays, autopilots, electronic chart systems, and monitoring devices. Their primary function is to isolate and replicate NMEA 0183 messages, preventing signal degradation and eliminating the electrical issues that arise when a single talker is connected directly to multiple listeners.

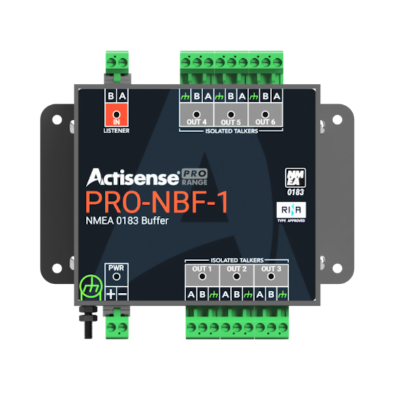

NMEA 0183 buffer by Actisense
The NMEA 0183 protocol, widely used across the maritime industry, defines a standard electrical interface and sentence format for transmitting navigational data. However, a native NMEA 0183 port is only capable of driving a limited number of listeners (typically one to three), depending on signal load, cable length, and baud rate. Exceeding these limits can result in current drive issues, signal reflections, or corrupted data—challenges that NMEA 0183 buffers are designed to overcome.
By taking a single input from a talker and distributing it across multiple electrically isolated outputs, NMEA 0183 buffers preserve signal integrity and simplify system wiring. Most models support RS-232, RS-422, or RS-485 interfaces, and many offer DIN rail mounting for ease of integration within navigation enclosures. The buffers are typically bi-directional or uni-directional, depending on the design, and support baud rate matching to maintain compatibility across varying devices.
Some NMEA 0183 buffers also incorporate diagnostic and monitoring features that allow users to observe NMEA data in real time. These tools are critical for troubleshooting wiring issues, filtering out invalid or noisy NMEA sentences, and verifying data routing. Many modern models support both TCP/IP and UDP communication over Ethernet, allowing networked diagnostics and data streaming to connected PCs or networked displays. RJ45 Ethernet ports make integration with onboard systems straightforward.
Applications of NMEA 0183 Buffers
NMEA 0183 buffers are commonly found in systems requiring high-reliability data distribution, such as:
Integrated Bridge Systems (IBS): Where data from navigation sensors must be routed to multiple displays and control systems without interference or loss.
Automatic Identification Systems (AIS): When one AIS talker feeds multiple chart plotters, VDRs (Voyage Data Recorders), or monitoring consoles.
Sonar and depth sounders: Used to relay depth data to both bridge and engine room monitoring systems simultaneously.
Autopilot systems: Where the autopilot needs clean GPS or compass data isolated from signal noise and shared with additional onboard computers.
Fleet management and remote diagnostics: Ethernet-enabled buffers allow NMEA data to be streamed over TCP/IP for remote monitoring or logging.
Buffers are often installed on DIN rails within equipment enclosures or marine data hubs. For example, a vessel might use a DIN rail-mounted NMEA 0183 buffer to distribute GPS data to the autopilot, radar, and chart system, while simultaneously sending a filtered, monitored output to an Ethernet network for diagnostics via a connected PC.
Filtered and Blocking Modes
Advanced NMEA 0183 buffers may offer blocking or filtering modes to prevent malformed or conflicting NMEA sentences from passing through to connected devices. These filters ensure only valid, formatted NMEA messages are routed through the buffer, reducing the risk of display anomalies or navigation errors. Some units also support data routing rules that control how listener data and talker data are managed across the buffer’s ports.
System Integration and Network Design

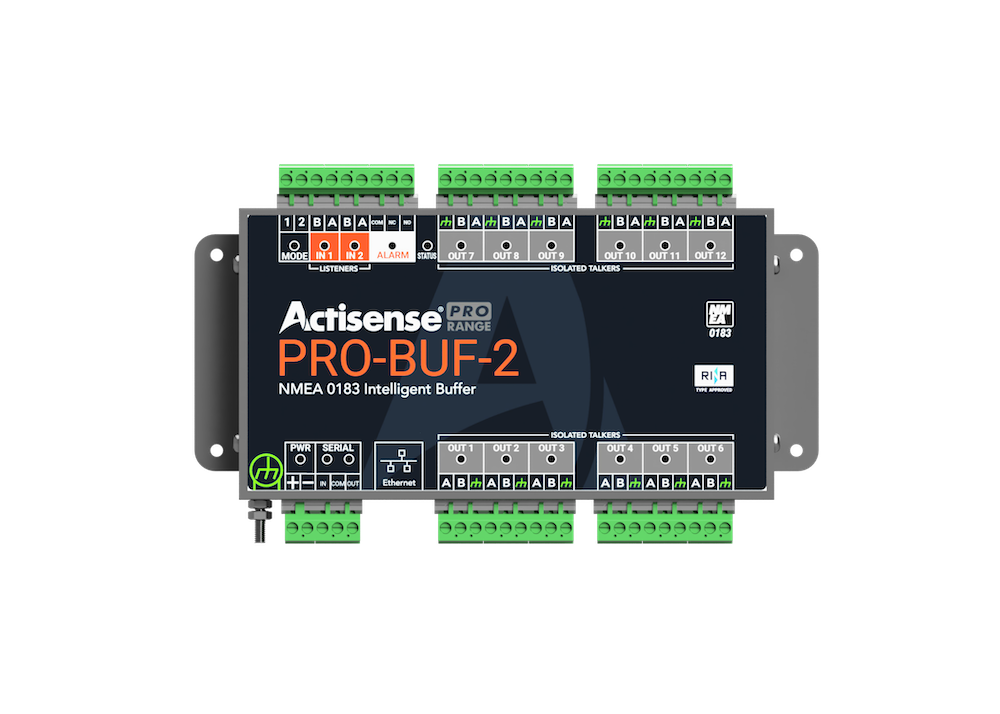

NMEA 0183 buffer with bi-directional serial and Ethernet port by Actisense
In more complex vessel networks, especially those that mix legacy systems with newer electronics, NMEA 0183 buffers simplify the integration of diverse devices with different electrical standards. RS-232, RS-422, and RS-485 interfaces are often supported to match the connection types of various onboard devices. A buffer can convert a single talker’s output to be simultaneously compatible with multiple listener devices across these standards.
Additionally, these buffers help maintain compliance with marine regulations and best practices, particularly in commercial vessels where navigation data must be accurately distributed to mandated monitoring and recording systems.
Transitioning to NMEA 2000
As marine electronics evolve, many vessels are transitioning from NMEA 0183 to NMEA 2000 networks. NMEA 2000 offers higher data transfer rates, simplified cabling, and enhanced network capabilities, allowing multiple devices to communicate seamlessly on a single bus. While NMEA 0183 buffers are essential for legacy systems, integrating NMEA 2000 devices can further enhance onboard data management and interoperability.
Overview of NMEA 0183 Buffers
NMEA 0183 buffers are indispensable tools in marine electronics, providing electrical isolation, reliable data replication, and compatibility across complex NMEA networks. Whether connecting GPS data to multiple bridge systems or integrating legacy NMEA 0183 devices with Ethernet-based diagnostics, buffers ensure consistent performance and signal integrity. Their role in filtering, monitoring, and routing NMEA messages makes them essential in both commercial and recreational maritime applications.
