Total Dissolved Gas Pressure Probes

Total Dissolved Gas (TDG) pressure probes play a pivotal role in advancing oceanographic research, particularly in understanding ocean circulation, marine ecosystem health, and biogeochemistry.

These sensors are essential as part of the monitoring systems to ensure the equilibrium between atmospheric gases and their dissolved counterparts in the ocean and other aquatic systems, with applications ranging from studying gas exchange dynamics to assessing impacts of climate change on marine environments.

The following overview delves into the technologies underlying TDG probes, the challenges faced in deploying them in subsea settings, and their contributions to ocean science.

Table of Contents:

• What are TDG Pressure Probes?
• Components of PDG Pressure Probes
• Challenges in Subsea Deployment
• Applications
• Future Innovations in TDG Probe Technology

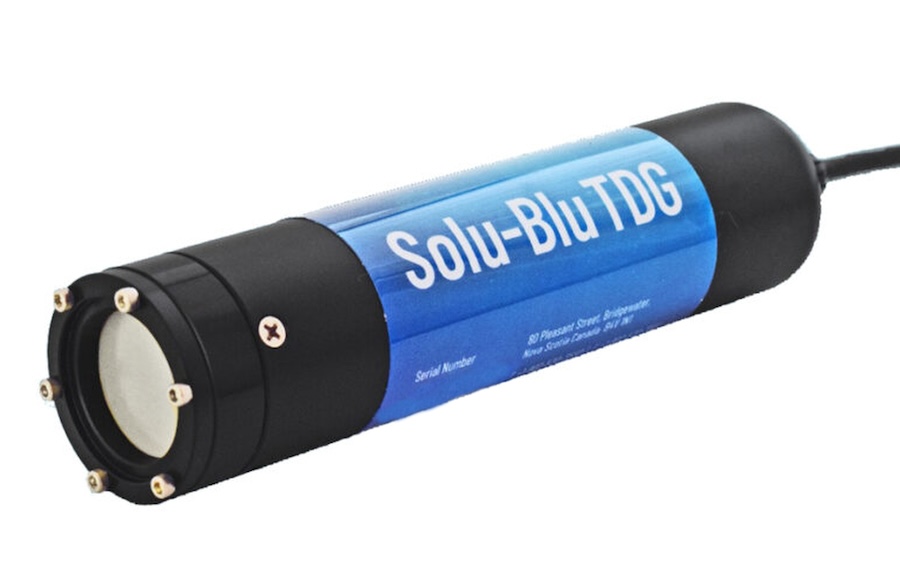

What are TDG Pressure Probes?

TDG probes are instruments designed to measure the total pressure exerted by dissolved gases in a liquid medium. Unlike gas-specific sensors, TDG probes capture the aggregate pressure of all dissolved gases, providing insights into phenomena such as supersaturation events, hypoxia, and decompression risks for aquatic organisms. They are commonly employed in oceanography and biogeochemistry to understand gas dynamics within marine environments, also enabling greenhouse gas monitoring.

Components of TDG Probes

Membrane-Based Sensing Mechanism

At the core of most TDG probes is a semi-permeable membrane. This component selectively allows dissolved gases to diffuse into a small chamber, isolating them from the liquid medium. The membrane’s material—often polytetrafluoroethylene (PTFE) or silicone—is chosen for its durability and selective permeability, critical for withstanding harsh subsea environments while ensuring accurate readings.

Pressure Transducer Technology

The pressure transducer, located within the gas chamber, converts the physical pressure exerted by dissolved gases into an electrical signal. State-of-the-art TDG probes employ piezoresistive or capacitive transducers, valued for their high sensitivity and stability. These transducers must be carefully calibrated to account for ambient hydrostatic pressure, ensuring the accuracy of measurements in varying depths.

Integrated Temperature Compensation

Temperature fluctuations in the marine environment can significantly influence gas solubility and, consequently, TDG measurements. Modern probes incorporate temperature sensors that enable real-time compensation, maintaining the integrity of data in dynamic conditions. The materials used for temperature sensors are designed to ensure rapid response and minimal drift over extended deployments.

Data Logging and Transmission

Advances in electronics have enabled TDG probes to support onboard data logging and real-time transmission. Microcontrollers within the probes handle data processing, storage, and communication, often through underwater cables or acoustic modems. The development of low-power electronics is especially crucial for long-term deployments in remote subsea locations.

Challenges in Subsea Deployment

Corrosion Resistance

The marine environment is highly corrosive, posing a significant challenge to TDG probe durability. To mitigate this, housings are typically constructed from materials such as titanium or anodized aluminum, offering superior resistance to saltwater corrosion. Additional coatings and seals are often employed to safeguard electronic components.

Biofouling Mitigation

Marine biofouling—the accumulation of biological organisms on sensor surfaces—can obstruct membranes and impair sensor performance. Anti-fouling strategies, including copper-based coatings and periodic mechanical cleaning mechanisms, are integrated into TDG probes to ensure long-term functionality. Innovations in ultraviolet (UV) light-based anti-fouling systems are also being explored for non-invasive protection.

Pressure and Depth Constraints

Deploying TDG probes in deep-sea environments necessitates robust designs capable of withstanding extreme pressures. Pressure-rated housings and reinforced membranes are engineered to function at depths exceeding several thousand meters. However, the balance between durability and sensor sensitivity remains a persistent engineering challenge.

Calibration and Drift

Accurate TDG measurements demand meticulous calibration against known gas pressures and compositions. Long-term deployments introduce the risk of sensor drift due to membrane degradation or transducer instability. Automated in-situ calibration systems, often using reference gases, are becoming an essential feature of modern TDG probes to address this issue.

Applications

Understanding Ocean Circulation

TDG measurements contribute to understanding ocean circulation patterns by revealing gas exchange dynamics between different water masses. For example, dissolved gas pressure gradients can indicate areas of upwelling or downwelling, key processes in nutrient transport and heat distribution within the ocean.

Assessing Marine Ecosystem Health

Changes in dissolved gas pressures are directly linked to phenomena affecting marine ecosystem health, such as hypoxia (low oxygen conditions) and supersaturation (risk of gas bubble disease in marine life). TDG probes provide critical data for monitoring these conditions, aiding in conservation efforts and policy-making.

Biogeochemical Research

In biogeochemistry, TDG probes help quantify the role of gases in chemical cycling within the ocean. Measurements of total dissolved gas pressure are vital for understanding processes like denitrification, methane release (for which methane analyzers can then be used), and the ocean’s capacity to sequester carbon, all of which have implications for global climate change.

Climate Change Impacts

As climate change alters temperature and salinity profiles in the ocean, dissolved gas dynamics are expected to shift. TDG probes enable researchers to track these changes, offering insights into the ocean’s response to anthropogenic influences. This data is invaluable for refining climate models and predicting future scenarios.

Future Innovations in TDG Probe Technology

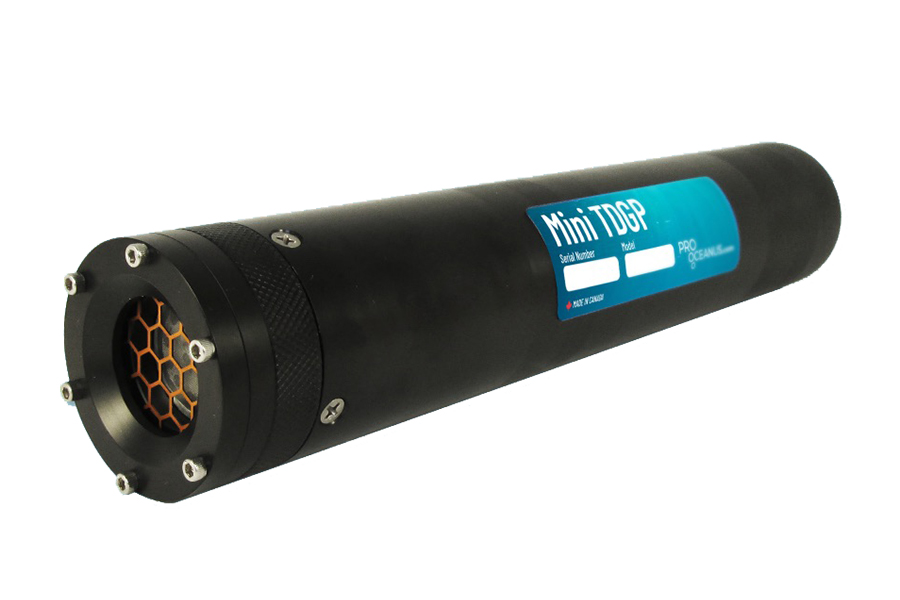

Miniaturization and Portability

Emerging technologies are focused on reducing the size and weight of TDG probes, making them suitable for deployment on autonomous underwater vehicles (AUVs) and drones. Miniaturized designs also reduce power consumption, extending operational lifespans.

Enhanced Anti-Fouling Technologies

The integration of advanced anti-fouling systems, such as nanotechnology-based coatings and AI-driven biofouling detection, promises to enhance sensor reliability in long-term deployments. These innovations are particularly critical for instruments used in biodiverse and productive marine zones.

Multi-Parameter Integration

Future TDG probes are expected to incorporate additional sensors for measuring parameters such as dissolved oxygen, pH, and conductivity. Multi-parameter systems will provide a more comprehensive understanding of marine conditions, streamlining oceanographic research.

Wireless Data Transmission

The development of robust underwater wireless communication protocols is poised to revolutionize data retrieval from TDG probes. Acoustic and optical communication systems are being optimized to support higher data transfer rates over longer distances, reducing the logistical complexity of ocean monitoring systems and projects.

Total Dissolved Gas pressure probes are indispensable tools in modern oceanography, providing critical data on gas dynamics in marine environments. The engineering challenges of deploying these instruments in harsh subsea conditions drive continuous innovation, from corrosion-resistant materials to advanced anti-fouling systems. As ocean science and technology evolve, TDG probes will remain at the forefront of efforts to understand and protect our oceans, offering invaluable insights into ocean circulation, biogeochemical cycles, and the impacts of climate change on marine ecosystem health.
